ISO9001 Stainless Steel C Channels 10FT 20FT Length SS C Channel

Ask Lasest Price
Brand Name :	WOSHANG
Model Number :	201 301 304 316 430 420
Certification :	ISO 9001
Price :	Negotatable
Payment Terms :	T/T, L/C
Supply Ability :	200 tons per day
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

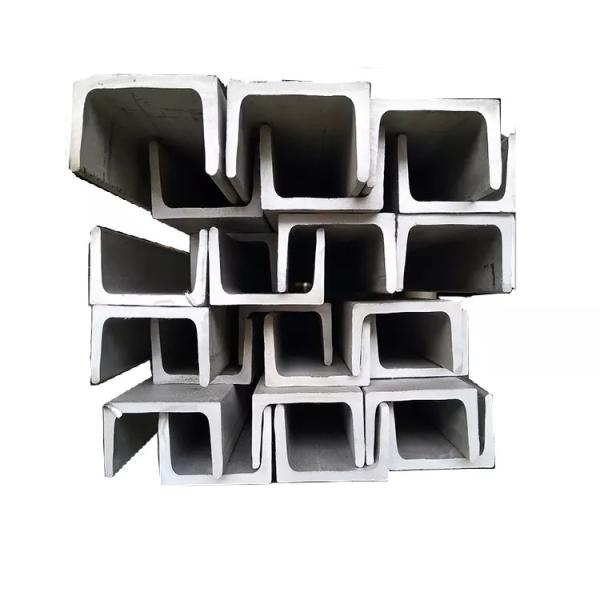

ISO9001 Stainless Steel C Channels 10FT 20FT Length SS C Channel

ISO9001 Stainless Steel C Channels 10FT 20FT Length SS C Channel

Stainless steel channel [1] is a long strip of steel with a grooved cross-section. Like I-beam, stainless steel channel steel is also divided into two types: ordinary channel steel and light channel steel. The model and specification are also expressed in millimeters of waist height (h) × leg width (b) × waist thickness (d).

Product Name		Channel Steel
Capacity		10000 tons/month
Certificate		ISO9001
Material		Q235/Q235B/Q345/Q345B/SS400
Type		C purlin
Surface treatment		polish;painted;galvanzied;punched
MOQ		Min trial order 25 ton each thickness
Payment		L/C at sight,30%T/T ,70% balance against B/L copy,Alibaba Trade Assurance
Specifications		H= 80mm-350mm
		B= 40mm-80mm
		C= 15mm-25mm
		T= 1.5mm-3.5mm
		Length=1-12 meters
Surface Treatment		HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white),powdercoating(Black,Green,White,Grey,Blue)etc.
Dimensions		13/16"x 1-5/8" or 1-5/8" x 1-5/8",1-1/2"x1-1/2",3/4"x1-1/2"
Lengths		Either 10FT or 20FT or cut into the length according to clients' requirements
Size		41mm21mm or 41mm41mm back to back 4141mm, 4162mm,41*82mm,and so on
Thickness		1.5mm, 1.8mm,1.9mm,2.0mm, 2.3mm,2.5mm ,2.7mm
Holes		2814mm,189mm,13.563mm,1125mm,11*30mm etc
Style		Plain or Slotted
MOQ		5 Tons
Packaging		In Bundles and fasten with steel strips or by wooden pallets

Product Advantages
01. Anticorrosive:17 years in heavy industrial areas.
02. Cheap:The cost of hot-dip galvanizing is lower than that of
other coatings.
03. Reliable:The zinc coating is metallurgically bonded to the
steel and forms part of the steel surface,so the coating is more
durable.
04. Strong toughness:The galvanized layer forms a special
metallurgical structure that can withstand mechanical damage during
transportation and use.
05. Comprehensive protection:Every part of the plated piece can be
galvanized,and is fully protected even in depressions,sharp
corners,and hidden places.
06. Save time and energy:Galvanizing process is faster than other
coating methods.

Chemical composition

Grade	C(max)	Mn(max)	P(max)	S(max)	Si(max)	Cr(max)	Ni(max)	Mo(max)
201	0.15	5.5-7.5	0.06	0.03	1	16-18	3.5-5.5	-
304	0.08	2	0.045	0.03	1	18-20	8-10.5	-
304L	0.03	2	0.045	0.03	1	18-20	8-12	-
316	0.08	2	0.045	0.03	1	16-18	10-14	2-3
316L	0.03	2	0.045	0.03	1	16-18	10-14	2-3
321	0.08	2	0.045	0.03	0.75	17-19	9-12	-

Our advantage:

1. Online service:If you have any questions about aspects of stainless steel or want to get a free sample, please send us your inquiry, we will get back to you within one business day,

2. Best price: We have our own factory, all products in accordance with ex-factory price, cheap, and the quality of high quality.

3. ISO Certified: Our business philosophy is Total Quality Management, from monitoring our own performance to strategic planning and results measurement.

4. Quick Delivery: Buyer will be kept informed of the order production progress. Best delivery and direct shipping line.Short lead times of 5 days or less available on most items.

We have invested 200 million yuan into the transformation of advanced equipment and production Iines, including the implementation of the ISO9001-2000 quality management system and ISO14001 environmental protection system, whilst actively developing diversification meanwhile, to form a production system with carbon steel and stainless steel as the main products, covering pipes, profiles and plates.
