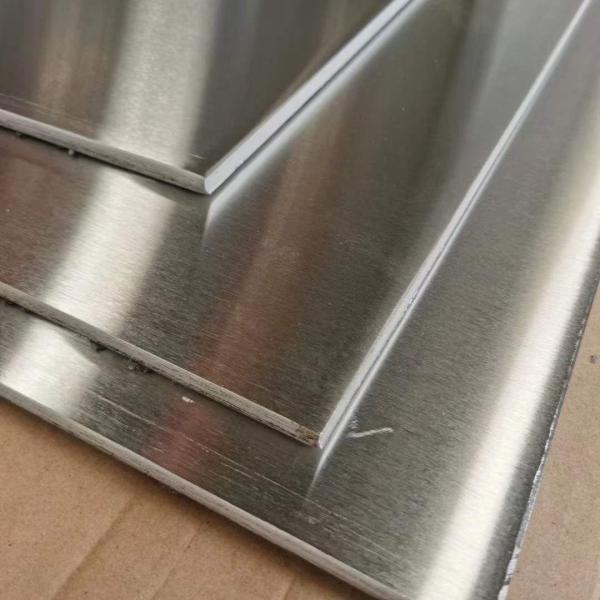

0.2mm 0.4mm 15mm Thick 1 2h SS304 Stainless Steel Plate Galvanized Steel Sheets

Ask Lasest Price
Brand Name :	Woshang
Model Number :	201 202 304 316 317 321 310 309 410 420
Certification :	SGS ISO ROHS
Price :	Negotatable
Payment Terms :	T/T, L/C, Western Union
Delivery Time :	1000TONS PER MONTH

Add to Cart

Product Details
Company Profile

0.2mm 0.4mm 15mm Thick 1 2h SS304 Stainless Steel Plate Galvanized Steel Sheets

0.2mm thick 0.4mm 1 5mm 1 2h 304 stainless steel plate galvanized steel sheets in steel plates

Carbon (C) : 1. Improve the deformation resistance and tensile strength of the blade;2. Enhance hardness and improve wear resistance.
Cr (Cr) : 1. Enhance hardness, tensile strength and toughness;2. Anti-wear and corrosion.
Cobalt (CO) : 1. Increase the hardness and strength so that it can withstand high temperature quenching;2. Used to enhance certain individual properties of other elements in more complex alloys.
Copper (Cu) : 1. Enhance corrosion resistance;2. Enhance wear resistance.
Manganese (Mn) : 1. Increase the quenchability, wear resistance and tensile strength;2. Removal of oxygen from molten metal by separate oxidation and separate vaporization;3. When added in large quantities, the hardness is enhanced, but the brittleness is improved.
Molybdenum (Mo) : 1. Enhanced strength, hardness, quenchability and toughness;2. Improve machinability and corrosion resistance.
Nickel (Ni) : 1. Enhance strength, hardness and corrosion resistance.
Phosphorus (P) : Enhanced strength, machinability and hardness.
2. When the concentration is too large, it is easy to crack
Silicon (Si) : 1. enhanced ductility;2. Increase the tensile strength;3. Removal of oxygen from molten metal by separate oxidation and separate vaporization.
Sulphur (S) : small amount used to improve machinability.
Tungsten (W) : Increases strength, hardness and toughness.
Vanadium (V) : Increases strength, hardness and seismic resistance.

Chemical composition

Grade	C(max)	Mn(max)	P(max)	S(max)	Si(max)	Cr(max)	Ni(max)	Mo(max)
201	0.15	5.5-7.5	0.06	0.03	1	16-18	3.5-5.5	-
304	0.08	2	0.045	0.03	1	18-20	8-10.5	-
304L	0.03	2	0.045	0.03	1	18-20	8-12	-
316	0.08	2	0.045	0.03	1	16-18	10-14	2-3
316L	0.03	2	0.045	0.03	1	16-18	10-14	2-3
321	0.08	2	0.045	0.03	0.75	17-19	9-12	-

Chemical Composition about stainless steel Plate

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤0.75	5.5-7.5	≤0.06	≤0.03	3.5-5.5	16.0-18.0	-
202	≤0.15	≤1.0	7.5-10.0	≤0.06	≤0.03	4.-6.0	17.0-19.0	-
301	≤0.15	≤1.0	≤2.0	≤0.045	≤0.03	6.0-8.0	16.0-18.0	-
302	≤0.15	≤1.0	≤2.0	≤0.035	≤0.03	8.0-10.0	17.0-19.0	-
304	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤0.03	19.0-22.0	24.0-26.0	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0.03	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	16.0-18.0	2.0-3.0
321	≤0.08	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	17.0-19.0	-
630	≤0.07	≤1.0	≤1.0	≤0.035	≤0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤2.0	≤0.045	≤1.0	≤0.035	-	23.0-28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.80	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤0.03	0.19-0.22	0.24-0.26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤0.03	-	11.5-13.5	-
430	≤0.12	≤0.75	≤1.0	≤0.040	≤0.03	≤0.60	16.0-18.0	-

FAQ

Q1: Are you a trading company or manufacturer?

A: We are factory for processing service and have own houseware.

2.Q. How long will it take to execute my order?
A:Our normal lead time is 7-15 working days.,but we have many models in stock , We will let you know the estimated lead time after payment ASAP.

3.Q Can I have a sample for testing?
A: Free samples, you just need pay the freight.

4.Q. Do you have products in stock?
A: Because we only do wholesale, usually do not have stock , we provide fast shipping for most products , If there is any stock , we will inform you with details.
